Rhino Tuff Tanks 180 Gallon Gravity Feed Tank Package

Description

180 GRAVITY FEED SYSTEM – NO VALVE

Additional information

Shipping Weight

225 lbs
Shipping Dimensions

44 x 36 x 50 in
Assembled Dimensions

36 x 42 x 68 in
Number of Tanks

1

RTT Spec Sheet - 500390

Download

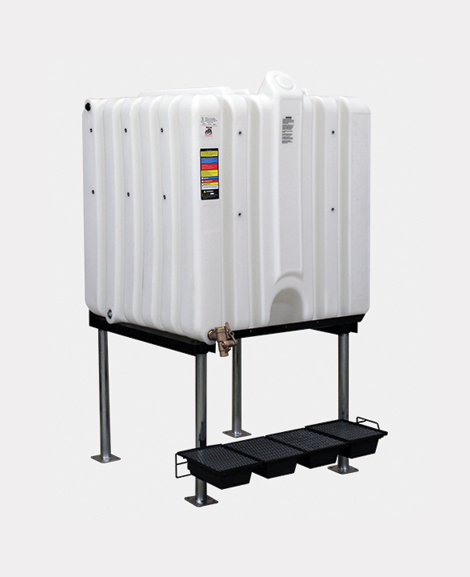

180 Gallon Gravity Feed Tank Package

REQUEST A QUOTE

RTT-6800-NV

PACKAGE INCLUDES:

  • One (1) 180 Gallon Stackable Tank
  • Tank stand with 24″ legs
  • Drip Tray Kit

Stackable Tank FEATURES

  • 2″ top opening for pump or vent application
  • 1″ opening for desiccant breather or remote fill
  • Convenient 2″ center fill opening
  • Interlocking top and bottom ridges for secure stacking
  • Six molded-in metal inserts allow for side mount pump plate to be attached
  • Mold-in graphic and identification label
  • Industry’s only molded-in 304 Stainless Steel 1″ NPT bushing at drain opening
  • Molded-in site gauge and semi-transparent material eliminates the need for external site gauges
  • Natural virgin high-density polyethylene construction
  • Stackable in any combo – no converting brackets needed
  • See your exact fluid levels
  • Standard 3′ x 3′ footprint among all sizes

PICK one VALVE

To complete your order pick one valve based upon your fluid needs. Refer to chemical compatibility chart for more information.

180 Gallon Tank (681 L)

Included in this package.

Stand Kit with 24" Legs

Included in this package.

Drip Tray Kit

Included in this package.

Rhino Tuff Tanks Brass Spring Release Valve

Brass Spring Release Valve (UL Listed)

RTT-4001

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Male NPT
  • 1” Spout Outlet with Hanging Hook
  • Spring Loaded Self-Closing Handle for Safe Dispensing
  • Internal Buna Gasket
  • Lockable
  • UL Listed

Refer to chemical compatibility chart for more information.

Rhino Tuff Tanks Black Polyethylene Ball Valve Kit

Polyethylene Ball Valve Kit

RTT-4002

Suitable for use with most lubricants and chemicals. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Polyethylene Coupler
  • 1” Polyethylene Ball Valve – Manual On/Off Handle BALL VALVE – MANUAL ON/OFF HANDLE
  • 1” Polyethylene Barbed 90 Degree Elbow Outlet

Refer to chemical compatibility chart for more information.

Rhino Tuff Tanks 1" Brass Ball Valve Kit

Brass Ball Valve Kit

RTT-4136

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for Antifreeze and DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • Brass Valve Construction
  • 1” Male NPT Inlet
  • 1” Barbed 90 Degree Elbow Outlet (Polyethylene Construction)
  • Lockable
  • Manual On/Off Handle

Refer to chemical compatibility chart for more information.

Rhino Tuff Tanks 1" Stainless Steel Ball Valve Kit

Stainless Steel Ball Valve Kit

RTT-4137

Suitable for use with most lubricants and chemicals except some acid chemicals. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” 304 Stainless Steel Full Port Valve
  • Manual On/Off Handle
  • Lockable
  • 1” 304 Stainless Steel Close Nipple Inlet
  • 1” Poly Barbed 90 Degree Elbow Outlet

Refer to chemical compatibility chart for more information.

Rhino Tuff Tanks Brass 1" Spring Release Valve

Brass Spring Release Valve 1"

RTT-4111

Suitable for use with Lubricants, Hydraulic Fluids and Synthetic Fluids. Not recommended for DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Male NPT
  • 1” Spout Outlet with Hanging Hook
  • Spring Loaded Self-Closing Handle for Safe Dispensing
  • Internal Buna Gasket
  • Lockable

Refer to chemical compatibility chart for more information.

Rhino Tuff Tanks 8' Gravity Hose with Manual Farm Nozzle

8 Foot Gravity Hose with Manual Farm Nozzle

RTT-4075

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for Antifreeze and DEF Fluids. Our valves integrate into all of our tank packages. Tank and Stand Kit sold separately.

FEATURES:

  • 1” Brass Ball Valve
  • 1” Black Iron Street Elbow
  • 1” X 8’ Hose with Swivel
  • 1” Farm Dispensing Nozzle

Refer to chemical compatibility chart for more information.

No Valve Option

1" Stainless Steel Drain Plugs

SKU: 500390 Categories: , , Tag:
