3/4″ Aluminum Diaphragm Pump

RTT-4079

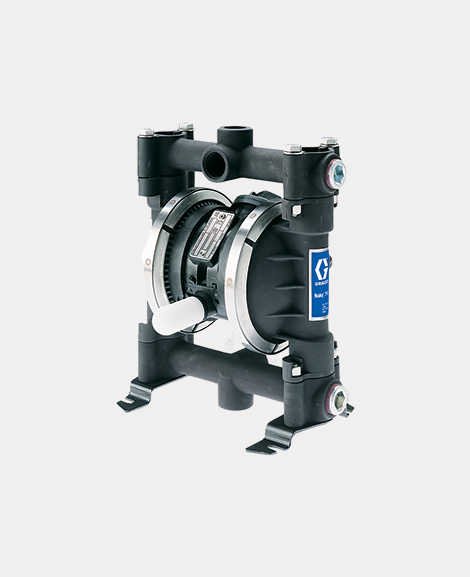

The Husky 716 air operated diaphragm pump features aluminum construction and an external controller for remote control capabilities.

SKU: 500427 Category: Tags: , ,

Description

The Husky 716 air operated diaphragm pump features aluminum construction and an external controller for remote control capabilities.

Features:

  • Aluminum/Buna N
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks



Additional information

Weight 8.5 lbs
Air Pressure Operating Range

30-100 psi (7 bar)

Maximum Air Consumption

28 scfm

Maximum Free-flow delivery

16 gpm (61 lpm)

Typical Application

Oil Transfer
Oil Evacuation
Water, Anti-freeze
Fuel Dispense (with 50 psi relief valve)
Fuel Transfer
Windshield Wash Solution

Air Inlet NPT

1/2

Air Exhaust Port

3/8 npt(f)

Fluid Inlet / Outlet

3/4 npt(f)

Air Valve Replacement Kit

241657

Kits (Seats, Balls, Diaphragms)

D05277

Diaphragm Kit

D05007

Manual

308573

Instruction Manual

308573 and 308981

Maximum Fluid Working Pressure

100 psi

Maximum Pump Speed

400 cpm

Gallons per cycle

.4

Maximum Suction Lift (water with buna balls)

15 ft dry, 25 ft wet

Maximum Size Pumpable Solids

3/32 in

Minimum Operating Temperature

40 °F

Maximum Operating Temperature

225 °F

Sound Power Level (measured per ISO standard 9614-2)

77 dB(A) – At 70 psi (4.8 bar, 0.48 MPa) at 50 cycles per minute
95 dB(A) – At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute

Sound Pressure Level (measured 1 m from pump)

67 dB(A) – At 70 psi (4.8 bar, 0.48 MPa) at 50 cycles per minute
85 dB(A) – At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute

Wetted Parts

aluminum, stainless steel, PTFE, zinc-plated steel

Non-wetted External Parts

Polypropylene, stainless steel, polyester (labels), nickel-plated brass, epoxy-coated steel (feet)

Manufacturer Part Number

241906
