Description
METER PRESET ELECRTONIC GRACO (LD)

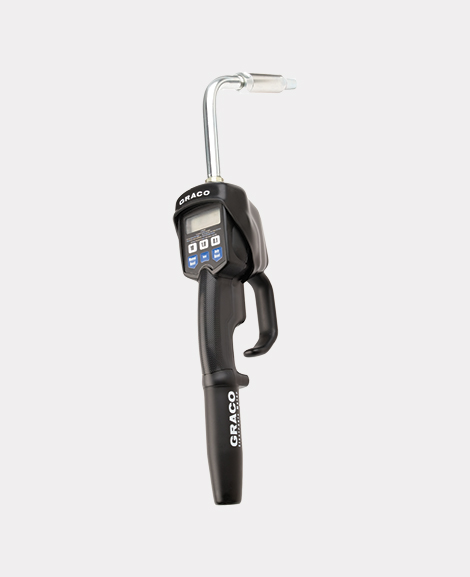

Electronic Preset Dispensing Meter – LD Series
rtt-4007
Introducing Graco’s LDP5 series meters are ideal for metered oil and dispense for lighter duty applications, including small maintenance shops, tire-muffler shops, fast-lubes, independent repair facilities and lower volume in-plant applications.
Features:
- Preset Dispense
- Designed for indoor use, with standard flow rates of 5 gpm (18.9 lpm)
- Dispenses in gallons, quarts, pints and liters
- Easy to read LCD display with durable switches for long life
- Rugged engineered material for superior impact resistance and long life
- Ergonomically-designed handle for optimum comfort
- Standard rigid extension kit and automatic thermal compensating nozzle
- Optional extensions available
*For indoor use only*
Typical Applications
- Metered oil dispense
- Heavy-duty dealerships
- Fleet service facilities
- Automotive dealerships
- Fast lube centers
- Service shops
- In-plant
Call (630) 527-9933
or Request a Quote!Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 11 × 3.25 × 3.25 in |
| Typical Fluids Handled | Anti-freeze, Motor Oil, Gear Oil, Oil |
| Flow Range: | 0.1 – 5 gpm (0.4 – 19 lpm) |
| Maximum Working Pressure: | 1000 psi (69 bar) |
| Units of Measure | Quarts, pints, gallons, liters (factory set to quarts) |
| Weight: | 3 lb (1.36 kg) |
| Swivel Inlet: | 1/2 in npt |
| Outlet | 1/2 in npt |
| Operating Temp: | 32 – 120°F (0 – 48.8°C) |
| Storage Temperature Range | -30 – 120°F (-34.4 – 48.8°C) |
| Battery: | 9 volt alkaline |
| Battery Life | one year |
| Wetted Materials | sst, nitrile rubber, zinc, cs, lcp |
| Meter Pressure Loss | 90 psi (6.2 bar) @ 5 gpm (19 lpm) |
| Accuracy | ± 0.5% |
| Dimensions (without extension) | 11 in L x 3.25 in W x 3.25 in H |
| Maximum Totalizer | 999,999 gallons or liters |
| Warranty | Two Years |
| Instruction Manual | 312668 |
| Manufacturer Part Number | 256216 |
