Description

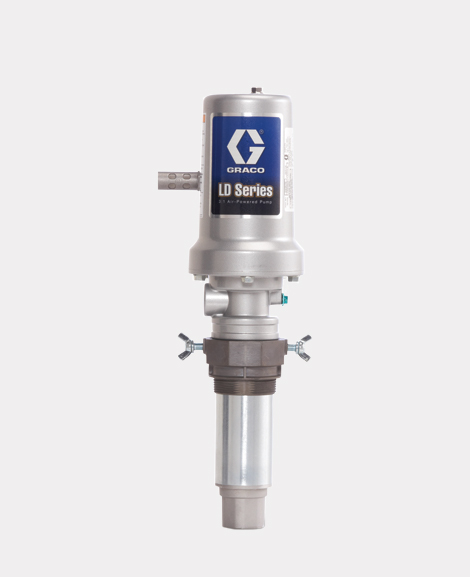

PUMP 5:1 LD SERIES W/BUNG ADAPTER GRACO
LD Series Pump, 5:1
RTT-4019
For dispensing non-corrosive and non-abrasive lubricants, oil, grease, and automatic transmission fluids in stationary or mobile installations.
Use with compressed air only.
For professional use only.
Not for use with windshield washer fluid.
Call (630) 527-9933
or Request a Quote!Additional information
| Typical Applications: | Automotive Dealerships, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers |
|---|---|
| Fluid Types: | Motor Oil, Gear Oil, Hydraulic Fluid, Automatic Transmission Fluid, Oil, Grease |
| Maximum Working Pressure | 750 psi |
| Fluid Pressure Ratio | 5:1 |
| Suction Lift (feet of oil) | 10 |
| Air Operation Range | 25 – 150 PSI (1.37 – 10.3 bar) |
| Recommended Air Pressure (for optimum pump life) | Less than 125 psi (8.6 bar, 0.86 MPa) |
| Maximum Recommended Pump Speed | 180 cycles/min |
| Cycles per gallon (liter) | 37 cycles/gal (10 cycles/liter) |
| Recommended Speed (for optimum pump life) | 75 cycles/min and lower, 2 gal/min (7.6 l/min) |
| Air Consumption (at 100 psi) | See Performance Curves in instruction manual 3A1334 |
| Wetted Parts | zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum |
| Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels. | 82.0 dB(a) |
| Performance Curve | See charts in instruction manual 3A1334 |
| Air inlet | 1/4"-18 NPT |
| Fluid inlet | 1"-11.5 NPT |
| Fluid outlet | 1/2"-14 NPT |
| Free Flow | 6.7 gpm |
| Manufacturer Part Number | 24G588 |
