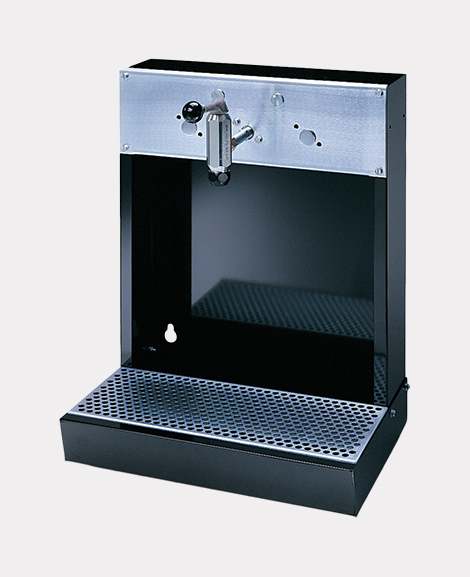

Oil Dispense Bar

RTT-4505

Modular convenient design allows up to 2 oil dispense taps or 3 meters to be added at the time of installation, or later if required.

Call (630) 527-9933

or
Request a Quote!
SKU: 500429 Category: Tag:

Description

Modular convenient design allows up to 2 oil dispense taps or 3 meters to be added at the time of installation, or later if required.

features:

  • Tough metal cabinet with baked-on enamel finish.
  • Constructed with single-dispense tap and waste pan with plated, perforated metal service area and drain connection.
  • Modular convenient design allows up to 2 oil dispense taps or 3 meters to be added at the time of installation, or later if required.
  • Instruction manual 307742.
  • Maximum working pressure 900 psi (62 bar).
  • 22.6 in H x 13.25 in D x 18.3 W (57.4 cm H x 33.7 cm D x 46.5 cm W)
  • Oil bar ships with one spigot. For two-, three-, and four-spigot oil bars, order additional spigots (RTT-4503 / PN500430).

Additional information

Max. Pressure

900 PSI (62 bar)

Spigot Inlet

3/8" NPTF

Wetted Materials

Steel, Aluminum, Buna N™
