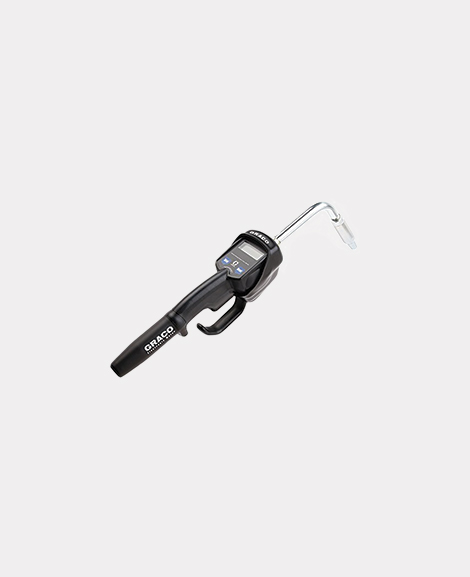

Electronic Non-Preset Dispensing Meter – LD Series

rtt-4006

Graco’s LDM5 series meters are ideal for metered oil and dispense for lighter duty applications, including small maintenance shops, tire-muffler shops, fast-lubes, independent repair facilities and lower volume in-plant applications.

Call (630) 527-9933

or
Request a Quote!

Description

Introducing Graco’s LDM5 series meters are ideal for metered oil and dispense for lighter duty applications, including small maintenance shops, tire-muffler shops, fast-lubes, independent repair facilities and lower volume in-plant applications.

Features:

  • Manual Dispense
  • Designed for indoor use, with standard flow rates of 5 gpm (18.9 lpm)
  • Dispenses in gallons, quarts, pints and liters
  • Easy to read LCD display with durable switches for long life
  • Rugged engineered material for superior impact resistance and long life
  • Ergonomically-designed handle for optimum comfort
  • Standard rigid extension kit and automatic thermal compensating nozzle
  • Optional extensions available

*For indoor use only*

Additional information

Weight 3 lbs
Dimensions 11 × 3.25 × 3.25 in
Typical Applications

Metered oil dispense
Heavy-duty dealerships
Fleet service facilities
For indoor use only
Automotive dealerships
Fast lube centers
Service shops
In-plant

Typical Fluids Handled

Anti-freeze, Motor Oil, Gear Oil, Oil

Flow Range:

0.1 – 5 gpm (0.4 – 19 lpm)
(Tested in 10W oil at 70°. Flow rates vary with fluid pressure, temperature, viscosity, inlet fitting and nozzle type.)

Maximum Working Pressure:

1000 psi (69 bar)

Units of Measure

Quarts, pints, gallons, liters (factory set to quarts)

Weight:

3 lb (1.36 kg)

Swivel Inlet:

1/2 in npt

Outlet

1/2 in npt

Operating Temp:

32 – 120°F (0 – 48.8°C)

Storage Temperature Range

-30 – 120°F (-34.4 – 48.8°C)

Battery:

9 volt alkaline

Battery Life

one year

Wetted Materials

sst, nitrile rubber, zinc, cs, lcp

Meter Pressure Loss

90 psi (6.2 bar) @ 5 gpm (19 lpm)
(Tested in 10W oil at 70°. Flow rates vary with fluid pressure, temperature, viscosity, inlet fitting and nozzle type.)

Accuracy

± 0.5%
(@ 2.5 gpm (9.5 lpm) @ 70° F (21°C) with 10 wt. oil and 1 gal (3.8 l) dispensed. May require re-calibration. Out-of-box accuracy ±1.25%. Not recommended for in-line installation.)

Dimensions (without extension)

11 in L x 3.25 in W x 3.25 in H

Maximum Totalizer

999,999 gallons or liters

Warranty

Two Years

Instruction Manual

312668

Manufacturer Part Number

256215
