Description

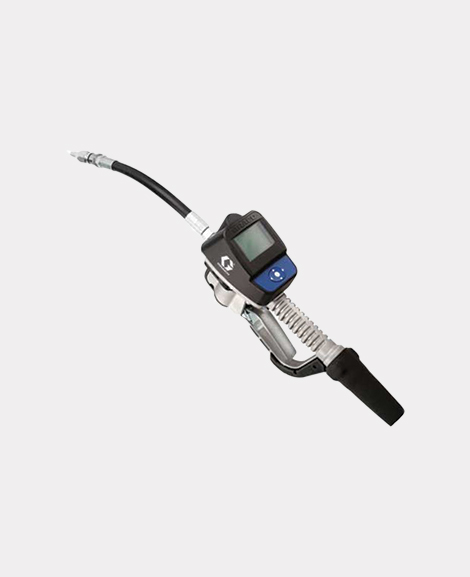

METER PRESET ELECTRONIC HD GRACO (SD)
Electronic Preset Dispensing Meter – SD Series
rtt-4107
Graco’s SD series meters are ideal for metered oil and dispense for standard and heavy-duty applications, including car/truck dealerships, fleets, mining, off-road, public works garages, construction and higher volume in-plant applications.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 13 × 3.75 × 5.75 in |
| Typical Fluids Handled | Anti-freeze, Motor Oil, Gear Oil, Oil |
| Flow Range: | 0.1 – 5 gpm (0.4 – 19 lpm) |
| Maximum Working Pressure: | 1500 psi (103.4 bar) |
| Units of Measure | Quarts, pints, gallons, liters (factory set to quarts) |
| Weight: | 5 lb (2.3 kg) |
| Swivel Inlet: | 1/2 in-14 npt (female) |
| Outlet | 3/4 in-16 straight thread O-ring Boss |
| Operating Temp: | 4 – 158°F (-20 – 70°C) |
| Storage Temperature Range | -40 – 158°F (-40 – 70°C) |
| Battery: | 4 AA alkaline or 4 AA lithium |
| Battery Life | one year |
| Wetted Materials | Aluminum, stainless steel, PBT/PC, zinc, nitrile rubber, CS |
| Meter Pressure Loss | 80 psi @ 10 gpm +/- 0.5% |
| Accuracy | ± 0.5% |
| Dimensions (without extension) | 13 in L x 3.75 in W x 5.75 in H |
| Maximum Totalizer | 999,999 gallons or liters |
| Warranty | Five Years overall, three years electronics |
| Instruction Manual | 312865 |
| Manufacturer Part Number | 255351 |
