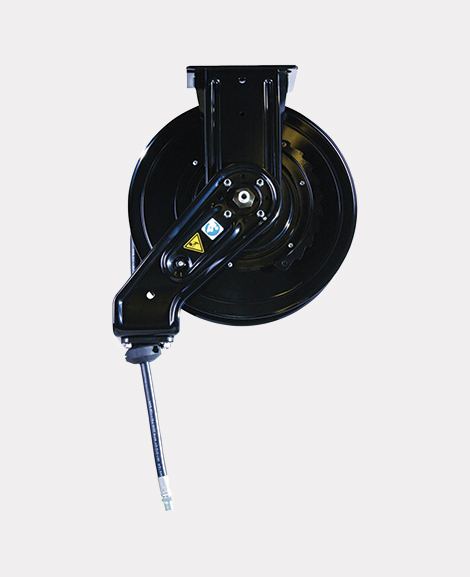

Hose Reel 1/2″ x 50 ft Hose

Rtt-4011

Professional, durable hose reels designed for daily use.

Call (630) 527-9933

or
Request a Quote!
SKU: 500419 Category: Tags: , ,

Description

Our pump accessories work with most major pump/hose reel manufacturers.

  • Designed for daily use applications, such as dealerships, fleet service and maintenance facilities
  • Structurally engineered frame made from high strength steel will not bend or flex
  • Long-lasting spring provides constant spring torque through the entire range of motion
  • Flexible positioning of guide arm for mounting on bench or ceiling, wall or utility truck
  • Steel spool for demanding applications
  • Open swivel ports ensure high fluid flow with minimal pressure loss

Additional information

Fluid Pressure

2,000 psi (138 bar)

Hose ID

3/8 in

Hose Length

50 ft (15 mt)

Connection Size Inlet

1/2 in NPSM (male) ; 1/2 in BSPP (male)

Connection Size Outlet

1/2 NPT (male)

Operating Temperature

-20°F to 190°F

Wetted Parts

Zinc plated steel, anodized aluminum, Nitrile rubber

Sound Pressure

80 dB(A)

Sound Power

87 dB(A)

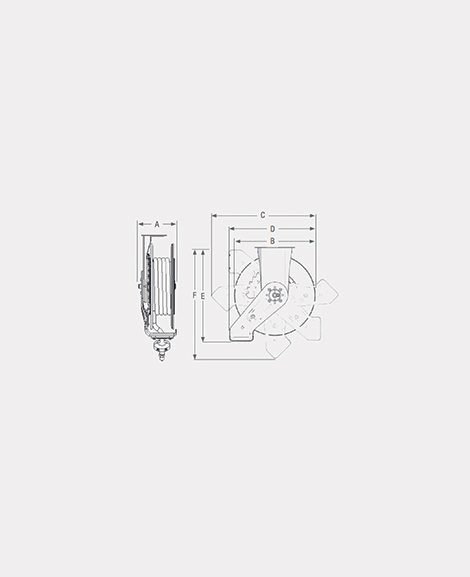

Dimensions

See Photo
A: 7.0 in (177 mm)
B: 18.1 in (460 mm)
C: 23.4 in (594 mm)
D: 19.2 in (488 mm)
E: 21.8 in (554 mm)
F: 25.2 in (640 mm)
