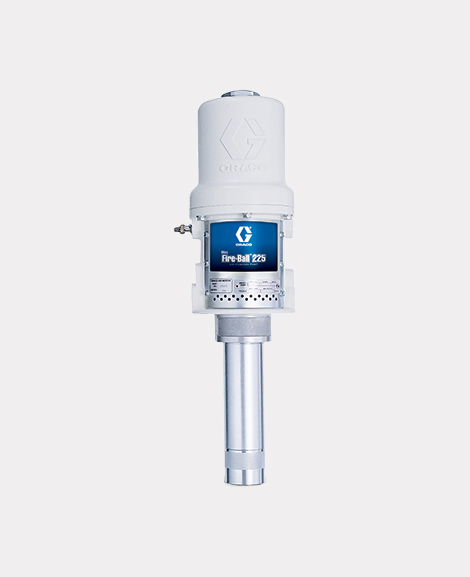

Mini Fire-Ball® 3:1

RTT-4077

The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Call (630) 527-9933

or
Request a Quote!
SKU: 500417 Category: Tags: , ,

Description

The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features Include:

  • In-line design with fewer parts for less pump wear
  • Differential air motor ensures smooth pumping
  • Double-acting pump provides reliable fluid flow

Additional information

Typical Applications:

Automotive Dealerships, Industrial plants, Mining, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers

Fluid Types:

Petroleum- and synthetic-based oils

Pump Ratio

3:1

Cycles per Gallon

43.5 (11.4 liters)

Fluid Flow gal/min @ 80 cpm

1.84 (7.0 liters)

Maximum Fluid Pressure

540 psi (37 bar)

Air Motor Effective Diameter

2.25 in (57.2 mm)

Air Operating Range

40 – 180 PSI (2.8-12 bar)

Approx. Air Use and Flow @ 100 PSI & 80 cpm

8.5 scfm @ 2.1 gpm, (0.242 m³/min @ 7.9 lpm)

Wetted Materials

Steel, Buna-N, Polyurethane, Aluminum, Rulon®C

Air Inlet Port Size

3/8” NPT (F)

Fluid Inlet Port Size

1-1/2” NPT (f)

Fluid Outlet Port Size

1/2” NPT (F)

Line Length

Upt to 250 ft (76.2 m) *Consult RTT for line or pipe sizing*

Dispense Points

1 to 2

Annual Usage

Up to 35,500 gal (132,000 l)

Manufacturer Part Number

246775
